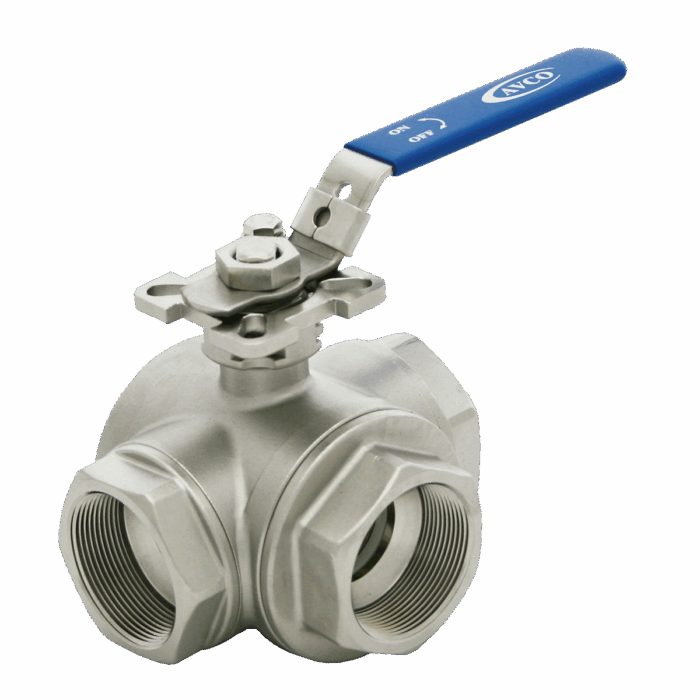

300 Series – Economy 3 Way, Direct Mount, Reduced Port, Diverter Ball Valve

The AVCO 300 series ball valve is an economy side entry diverter ball valve with ‘L’ and ‘T’ port ball options to swap or divert flow from one port to another, or change one media flow to another media flow through a common port. Constructed from cast 316 stainless steel (CF8M), it has NPT ends that meet ASME B1.20.1 and comes standard with an ISO 5211 direct mounting pad. It is available in sizes ¼” through 2” and up to 1000 WOG pressure. The valves come standard with a locking lever handle to prevent unwarranted use. A live loaded, blow-out proof stem is standard with reduced port flow. The valves come with 15% glass filled TFE (RTFE) seats and TFE seals to provide consistent performance in a wide range of applications including the chemical, hydraulic, food processing, water, oil and gas industries. The 300 Series valves offer the lowest price point for our diverter ball valves.
