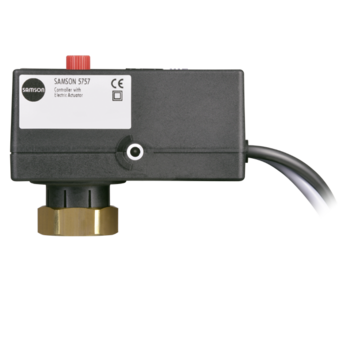

5757-3 Electric actuator with process controller for DHW applications

Electric actuator with process controller for DHW applications

• Linear actuator with integrated digital controller
• Force-locking connection to valves
• Motor switched off by torque-dependent limit contacts
• DHW heating control in instantaneous heating systems used in small to medium-sized buildings connected to a district heating or local heat supply network
• Control using two different set points, e.g. DHW temperature and DHW temperature for thermal disinfection
• Binary input to switch between set points
• Function to maintain water temperature constant, preventing the heat exchanger from cooling down between tapping
• Reversible direction of action
• Limit value monitoring
• Configuration, parameterization, diagnostic function, and online connection for monitoring using the TROVIS-VIEW software
• Diagnosefunktion und Online-Verbindung zur Beobachtung über die Software TROVIS-VIEW
• Operating status and errors indicated by LEDs
• Travel indicator
• Manual override
