5827 Electric actuator

Available In: CT, FL, MA, ME, NH, NY, PR, RI, VT

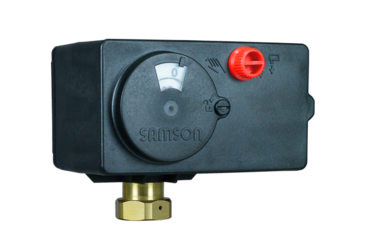

5827 Electric actuator with and without fail-safe action

Electric actuator with and without fail-safe action

Linear actuator with 6 mm, 12 mm, or 15 mm rated travel
Force-locking connection with 6 mm and 12 mm rated travel, form-fit connection with 15 mm rated travel
Fail-safe action Actuator Stem Extends or Actuator Stem Retracts
Motor switched off by torque-dependent limit contacts
Travel indicator
Manual override
Optionally three-step version or with digital positioner
Three-step version:
Synchronous motor with maintenance-free planetary gear
Version with digital positioner:
Stepper motor with maintenance-free gearing
Direction of action reversed by slide switch
Momentary travel calculated from transit time
Operating status and errors indicated by LEDs
Adjustable stroking speed
Blocking protection
Adjustable input and output signal ranges
Configuration, parameterization, diagnostic function, and online connection for monitoring using the TROVIS-VIEW software
