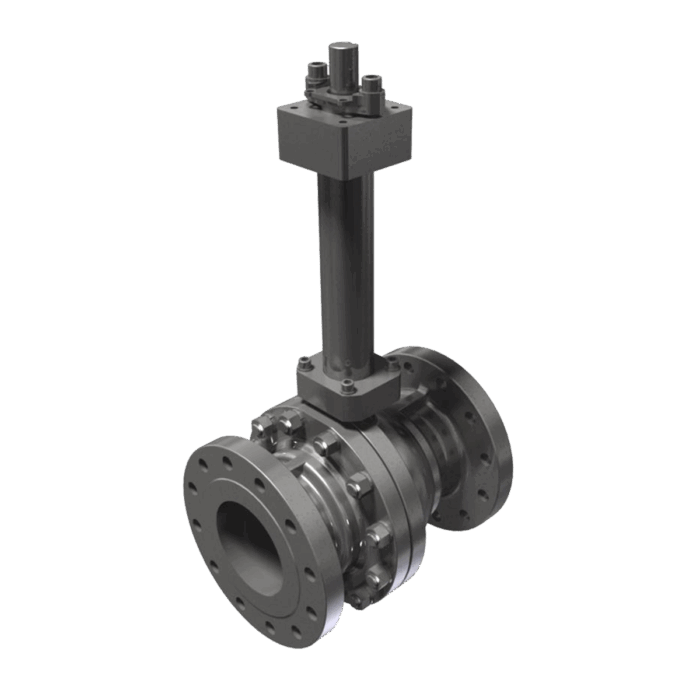

9500 Series – 2 Piece, Full Port, Fire Safe, Cryogenic, Flanged Ball Valve

The AVCO 9500 series ball valve is an enhancement to our 9100 Series valve that enables it to meet the demands of the cryogenic market. The 2-piece design is available from 1/2” through 12” with Class 150 or Class 300 integral flanges. The full port ball minimizes the pressure drop across the valve for a more efficient energy use within the piping system. It is designed to be fire safe per API 607 and meets the requirements of ASME B16.34, ASME B16.5 and API 598. The valve is available with our standard-length bonnets that ensure the operator is at a sufficient distance from the pipeline. Customized bonnet lengths are available as made to order for greater flexibility in system designs and for use in subterranean boxes. The upper mount pad complies with ISO 5211 and provides positive travel stops and lock off. This valve will meet all the requirements of the power, oil & gas, chemical, liquid nitrogen (LNG) and liquid oxygen markets.
