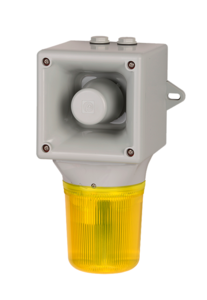

AB105STR Alarm Horn Sounder & Xenon Strobe

Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT

The low current consumption and high SPL in a robust fire retardant enclosure ensure the AB105STR is suitable for all general signalling applications. The alarm horn sounder & strobe beacon may be connected for simultaneous or independent operation. The Xenon beacon component features an automatically synchronised flash rate of 1Hz. The DC voltage versions also have user selectable 1.5Hz (90 flashes per minute) and double-strike flash rates. The double strike flash rate can be remotely activated via a third wire (as can alternative alarm tones on the horn sounder) enabling a audible and visual communication of a two stage alarm condition.

Talk To An Expert Request A Quote

Overview

The AB105STR combines a compact high output 113dB(A) alarm sounder with a powerful 5J Xenon strobe warning beacon. Featuring 64 alarm tone frequencies and 4 remotely activated stages/channels.

Benefits

Automatic synchronisation on multi-sounder system
Synchronised flash rates
Continuously rated
Stainless steel fixings
Unit can be mounted using external lugs or internal fixing positions
Dual M20x1.5mm threaded cable entries – adaptors available
Duplicate pluggable cable terminations – Class A
Diode polarized for use in supervised circuits
64 alarm tone frequencies and 4 remotely activated alarm stages
Available with custom tone configurations and frequencies
Can be mounted in any orientation
