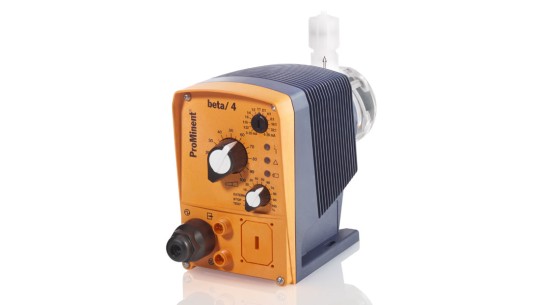

beta b Solenoid Diaphragm Metering Pump

Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT

The ProMinent beta b is a microprocessor-based diaphragm solenoid metering pump capable of flows from 0.16 to 8.45 gph (0.59 to 32 l/h) and pressures to 363 psi (25 bar).

Feed rate is determined by stroke length and stroke frequency. Stroke length is adjusted from 0% to 100% with a 10:1 turndown. Stroke frequency is adjusted in 10% increments from 10-100. (Optional) External control via a standard 4-20 mA or pulse contact signal.

Talk To An Expert Request A Quote

Overview

The ProMinent beta is a microprocessor-based diaphragm solenoid metering pump capable of flows from 0.16 to 8.45 gph (0.59 to 32 l/h) and pressures to 363 psi (25 bar).

Benefits

Certified to NSF/ANSI 61 (acrylic or PVDF liquid ends)
50% less power consumption
Auto-degassing liquid ends ideal for off-gassing chemicals such as bleach
Capable of handling up to 3000 cps of viscous media such as polymers
Integral bleed valve eliminates priming issues
Continuous monitoring of chemical supply with optional dual stage level switch
Adjustable stroke length and stroke frequency
Fault and pacing relays optional
Standard external control via potential-free contacts with pulse step-up and step-down to adapt to existing signal transducers of 64:1 to 1:64
(Optional) External control via standard 4-20 mA and potential-free contacts with pulse step-up and step-down of 32:1 to 1:32
