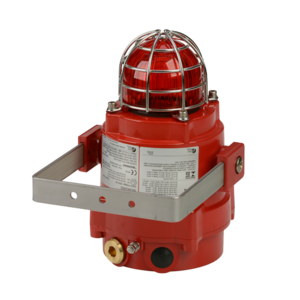

BExBG05 Explosion Proof Xenon Beacon 5 Joule

Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT

The BExBG05 5 Joule beacons robust construction enables installation in the harshest of environments. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard. The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium with a chromate and powder coat finish. All models have two M20 cable entries, large termination areas containing in & out terminals and an ingress protection of IP66/67.

Talk To An Expert Request A Quote

Overview

The flameproof BExBG05 5 Joule, 120 candela Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. Available as SIL 1 and SIL 2 compliant.

Benefits

Marine grade, corrosion proof, LM6 aluminium enclosure
Automatic synchronisation on multi-beacon system.
Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
Xenon tubes mechanically secured against shock & vibration
Glass lens & Stainless Steel guard
Very large termination area.
Dual M20 cable entries – adaptors available.
Stopping plug included.
Ratchet adjustable stainless steel ‘U’ bracket.
Reverse polarity diode fitted.
IP66/67 ingress protection.
120 candela effective light intensity.
UV stable PC, field replaceable, colour lens filter.
