*Price available upon request

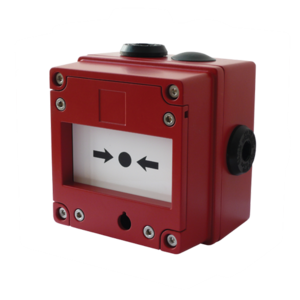

BExCP3-BG Break Glass Manual Call Point

Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT

The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium with a chromated and powder coat finish. Available with and without monitoring resistors all versions are certified to IECEx and ATEX standards with additional PESO, INMETRO and Ex EAC approvals. The break glass element features a safety membrane and is designed to snap ensuring the no glass fragments are released during activation. A hammer is available as an accessory if required by local code.

Talk To An Expert Request A Quote

Overview

The BExCP3-BG break glass manual call points are designed for the harshest of environments and approved for Zone 1, 2, 21 and 22 explosion proof hazardous areas for the control of fire and gas alarm systems. SIL2 compliant to IEC61508 (2010).

Benefits

Alternative housing colours are available to meet specific requirements
DIN rail mounted terminal blocks: 8 × 2.5mm²
Optional stainless Steel lift flap
Metalised Polyester or stainless steel duty label
Series and/or End of Line resistors, diodes or Zener diodes
Break glass hammer accessory available
