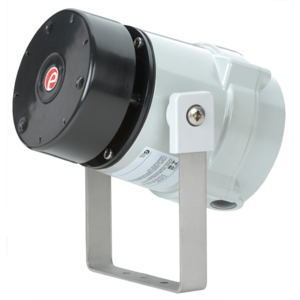

BExH120 ‘Belltronic’ Explosion Proof Bell

Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT

The digitally stored bell recording is output via a class D amplifier achieving sound levels exceeding the performance of a mechanical bell whilst offering a continuously rated signal. The radial horn design not only physically emulates the traditional bell it also replicates the distribution of the audible signal.

Talk To An Expert Request A Quote

Overview

The flameproof BExH120 Belltronic Signalling Bell is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx, ATEX, Ex EAC and INMETRO standards. . The BExH120 authentically reproduces the traditional sound of a electro-mechanical bell whilst providing a significantly higher level of performance and reliability.

Benefits

Marine grade, corrosion proof, LM6 aluminium enclosure.
Ingress protection IP66/67
Stainless steel fixings
Dual M20 cable entries – adaptors available.
Stopping plug included.
Reverse polarity diode fitted.
Digitally stored mechanical bell sound.
Continuously rated.
Maintenance free.
Very large termination area.
Ratchet adjustable stainless steel ‘U’ bracket.
