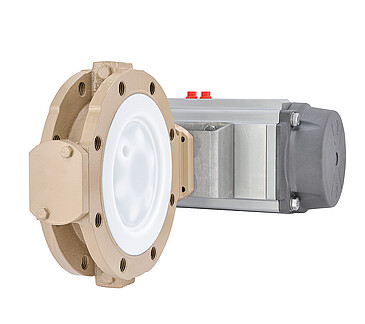

BR 10a – pneumatic – ANSI

Butterfly Valve

• Consisting of double-eccentric double-flange butterfly valve and actuator
• DIN ISO 5211 interface as standard
• 8 to 12 mm M-PTFE lining
• Lug-type and wafer-type bodies
• Tight shut-off in both directions
• Very wide control range
• Low initial breakaway torque
• PTFE V-ring packing loaded by disk springs on both sides
• TA Luft
• FDA compliance
• Leakage requirements according to DIN EN 12266, API 598 or ANSI FCI 70-2-2006
