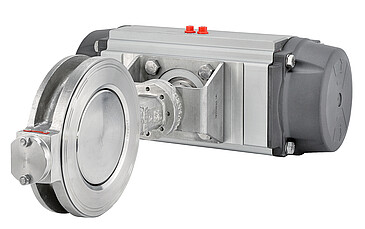

BR 14b/BR 14c – pneumatic – ANSI

Butterfly Valve

• Consisting of cast double-eccentric butterfly valve and actuator
• DIN ISO 5211 interface as standard
• Butterfly valve body made of steel or stainless steel
• Lug-type and wafer-type bodies
• Tight shut-off in both directions
• Very wide control range
• Low initial breakaway torque
• PTFE V-ring packing loaded by disk springs
• TA Luft
• Blow-out-proof shaft
• Soft or metal seal
• Fire-safe versions according to API (metal seal)
• Uninterrupted facing
• Face-to-face dimensions according to DIN EN 558, Series 20
• Leakage requirements according to DIN EN 12266
