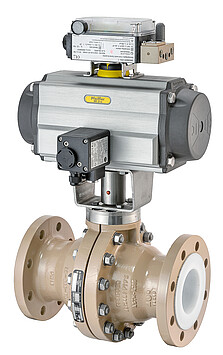

BR 20a – pneumatic – ANSI

Ball Valve

• Consisting of PTFE-lined ball valve and actuator
• Suitable for (highly) corrosive process media
• DIN ISO 5211 interface as standard
• Straight-through flow path
• High Kv coefficients
• 5 to 8 mm PTFE lining
• Single-piece ball shaft
• Blow-out-proof shaft
• Replaceable PTFE seals
• PTFE V-ring packing loaded by disk springs
• TA Luft
• Face-to-face dimensions according to DIN EN 558, Series 1 or 3
• Leakage requirements according to DIN EN 12266 or API 598
