BR 27a – pneumatic – ANSI

Available In: CT, FL, MA, ME, NH, NY, PR, RI, VT

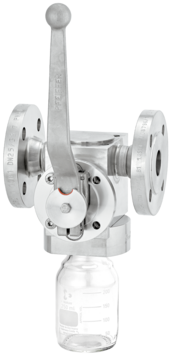

Sampling Valve

Sampling Valve

Discontinuous sampling valve
Consisting of ball valve and hand lever or actuator
Inline sampling ball valve for horizontal installation
Tight-closing, cavity-free sampling valve designed to sample liquids from flowing media without a bypass
Body of stainless steel (1.4571)
Ball / shaft of stainless steel (1.4571)
Representative sampling due to the direct installation in the pipeline
DIN ISO 5211 interface as standard
PTFE V-ring packing loaded by disk springs
No necking or abrasion of the pipeline during sampling
Venting or control connection 1/8″
Sear ring shells for a sampling without cavity
The sampling valve has a connection as per ISO 4796, DIN thread GL 45
Leakage requirements according to DIN EN 12266 or API 598
Sampling with a defined sample volume from a material flow
Diverse sample volumes
In the case of liquid media, depressurised sampling and therefore sampling at high pressures and from vacuum permissible
No fore- and no after-running
No risk of overflow as the sample volume is determined per stroke
No direct connection to the environment
No false operation due to long opening times
