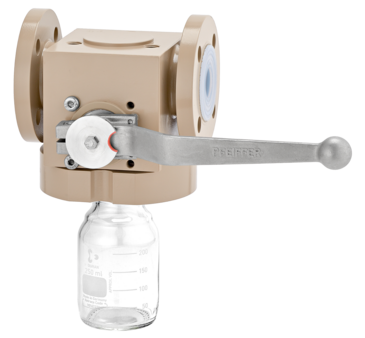

BR 27e – pneumatic – ANSI

Sampling Valve

• Continuous sampling valve
• Consisting of sampling valve and hand lever or actuator or dead man‘s handle
• Inline sampling ball valve for horizontal installation
• Tight-closing, cavity-free PFA-lined sampling valve designed to sample liquids from flowing media without a bypass
• Body of 1.0460 with PFA lining
• Ball/shaft of 1.4021 with PTFE coating
• Representative sampling due to the direct installation in the pipeline
• DIN ISO 5211 interface as standard
• PTFE V-ring packing loaded by disk springs
• No necking or abrasion of the pipeline during sampling
• Venting or control connection 1/4″
• Seat ring shells for a sampling without cavity
• The sampling valve has a connection as per ISO 4796, DIN thread GL 45
• Leakage requirements according to DIN EN 12266 or API 598
• Sampling with a variable sample volume from a material flow
• Sampling also possible under pressure to 16 bar
• Actuation with dead man’s handle (not part of the valve) or automated with 90° rotary actuator (see respective data sheet for details)
