C Series | Double OffsetHigh PerformanceCavitation Control

Available In: CT, MA, ME, NH, NY, RI, VT

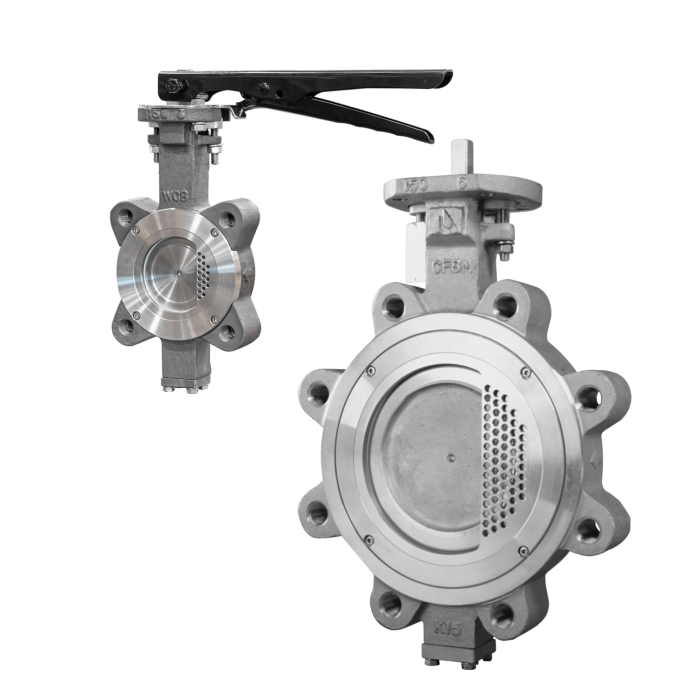

Diffuser is defined as “A device for reducing the velocity and increasing the static pressure of a fluid passing through a system”. Delta T’s unique diffuser plate butterfly valve does that by incorporating a spherical edged disc with the diffuser plate to direct and diffuse the flowstream. This optimizes the ability to control flow and minimizes noise, cavitation and damaging high velocity jets of fluid. In the first 30° of rotation, when pressure drop is the highest, the spherical edged disc constrains the flow, directing it through the diffuser to minimize the potential for damaging flow conditions.

ANSI Class 150 and 300 in Wafer, Lugged, & Flanged body styles
Available in a broad selection of materials
WCB and CF8M bodies standard
CF8M Stainless Steel disc and stem standard
Soft, fire safe, & metal seats available
Metal seats (high temperature, corrosive services, metallurgical-sensitive applications) w/ Class IV shutoff
ISO 5211 actuator mounting is standard, direct mounting on 12 inch and smaller
Control & anti-cavitation trim plate provides a high level of control and noise reduction within the first 30° of rotation
Soft seated trims offer bi-directional class VI shutoff
Clean, field repairable design
