*Price available upon request

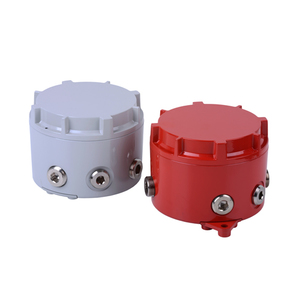

D1xJ2 Class I/II Div 1 Ex d Junction Box
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
The robust, marine grade, copper free LM6 aluminum enclosure features a threaded flame path and up to seven cable entries. Surface mounted via integrated lugs. With a power rating of up to 10W the junction box can be configured with a 12 way standard terminal block, a 12 way DIN rail terminal block.
Overview
The D1xJ2 is a versatile UL, cUL, IECEx & ATEX approved explosion proof junction box. The robust IP66 corrosion proof aluminium LM6 enclosure and extended temperature range ensures the D1xJ2 is suitable for all Class I/II Division 1/2, Zone 1, 2, 21 & 22 explosion proof applications.
Benefits
- Robust, marine grade LM6 aluminum alloy enclosure
- Chromate & powder coated finish – anti-corrosion
- IP rating per EN60529:IP66
- Type rating per UL50E/NEMA250:4/4X/3R/13
- Threaded flame path simplifies installation and inspection
- Stopping plugs included
- 6 x side cable entries, 1 x pendant conduit entry
