*Price available upon request
D2xC2LD3 Horn & LED Synchronized UL464 & UL1971
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT

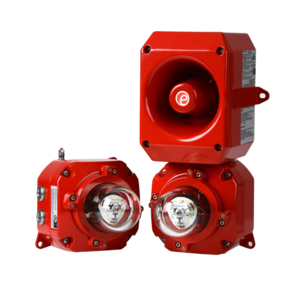

The D2xC2LD3 utilises an array of super high power Cree® LED’s, orientated to optimise visibility in any direction. The 20ms pulse creates an intense flash comparative to a Xenon strobe. Multiple D2xC2LD3 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules on the circuit. The horn & LED light can be powered from the same source, simplifying installation and reducing cabling costs. UL1971 effective candela rating of 79.3cd. The unit is UL/cUL, ULC, IECEx and ATEX approved for hazardous locations.
Overview
The haz loc D2xC2LD3 is an auto-synchronizing alarm horn & LED warning light / beacon tested to UL464 & UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications. UL1971 rating of 79.3cd. NFPA 72 compliant 20ms pulse.
Benefits
- Public mode fire use UL1971 & CAN/ULC-S526
- Private mode fire use UL1638
- Auto-synchronized for over 2 hours per UL1971
- 79.3 eff. candela – UL1971 Public mode fire
- 107.5 eff. candela – UL1638 Private mode fire
- 252.0 eff. candela – UL1638 General signaling
- 107dB(A) @ 10ft/3m max. sound output
- 64 alarm tones, 4 remotely selectable alarm stages/channels
- Choice of four UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz & 2Hz
- Marine grade aluminium enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Duplicate, pluggable cable terminations
- Supervisory diode
- Dual 1/2″NPT entries
- Supplied with haz loc rated stopping plugs/adaptors
