*Price available upon request

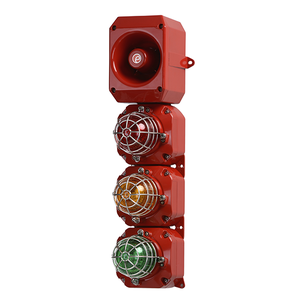

D2xC3 LED/Xenon & Horn Alarm Bar
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
The compact, close coupled hazardous location alarm bar assembly is ideal for applications where combined visual signals are required to provide multiple warnings. The Ex ec, non-sparking, D2xC3 features a preinstalled cable loom with a large termination area in the first beacon. An optional junction box can be specified if required. The innovative mounting lug connectors remove the need for a back plate and the optional stainless steel duty labels can be field orientated to allow the assembly to be mounted either horizontally or vertically.
Overview
The D2xC3 is an integrated stack assembly comprised of either high output LED or Xenon Strobe beacons with an alarm horn sounder from the D2x family of globally approved Class I/II Div 2 and Zone 2/22 audible and visual warning signals.
Benefits
- Private mode fire use & General signalling UL464/UL1638
- Globally approved to UL, cUL, ULC, IECEx and ATEX
- Available with LED and/or Xenon Strobe beacons
- Integrated high output alarm horn sounder up to 116dB(A)
- Choice of 64 alarm tone frequencies with 4 stages
- Automatic synchronisation
- Factory assembled with integrated cable loom
- Available with or without junction box
- LM6 marine grade aluminium enclosure
- Optional stainless steel duty labels
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant glass lenses
- 316 (A4) stainless steel lens guards as standard
- Field replaceable lens colour filters
- Supplied with haz loc rated stopping plugs
