*Price available upon request

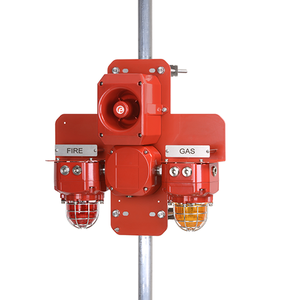

D2xC4 Haz Loc LED/Xenon & Horn Alarm Bar
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
The compact, close coupled D2xC4 alarm bar assembly is ideal for applications where combined audible and visual signals are required to provide multiple warnings. The D2xC4 features a preinstalled cable loom with a large termination area in the integrated junction box. The multi-stage alarm horn sounder can be configured to activate a separate alarm tone with each visual signal.
Overview
The D2xC4 is an integrated alarm bar assembly comprised of either high output LED or Xenon strobe beacons with a high output alarm horn sounder from the D2x family of globally approved Class I/II Div 2 and Zone 2/22 audible and visual warning signals.
Benefits
- Private mode fire use & General signaling UL464/UL1638
- Globally approved to UL, cUL, IECEx and ATEX
- Available with LED and/or Xenon strobe beacons
- Integrated high output alarm horn sounder up to 116dB(A)
- 4 remotely selectable alarm stages/channels
- Choice of 64 alarm tone frequencies
- Automatic synchronisation on multi-sounder system
- Mounted on a stainless steel back plate
- Factory assembled with integrated cable loom
- Junction box
- Close coupled assembly
- LM6 marine grade aluminium enclosure
- Optional stainless steel duty labels
- Ingress protection Type 4/4X/3R/13, IP66/67
- High impact resistant glass lenses
- Stainless steel lens guards as standard
- Field replaceable lens colour filters
- Dual cable entries
- Supplied with haz loc rated stopping plugs
