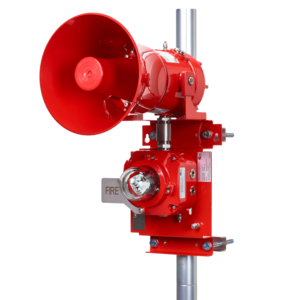

D2xCF Horn/Speaker Strobe
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
Robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosures with 316L stainless steel back plate – approved for Class I/II Division 2 and Class I Zone 2/22 applications. The D2xCF combines the industry leading D2xB1LD3 LED or D2xB1XH2 Xenon strobe with a 123dB(A) horn or 15W or 25W speaker. The strobe utilises an array of super high power Cree® LED’s, orientated to optimise visibility. The alarm horn employs class D amplification to provide a high sound output at optimum operating current.
Overview
The D2xCF is the optimum solution for public mode fire alarm signalling in hazardous locations. With a choice of either alarm horn or speaker the factory assembled configuration integrates the audible signal with a high output 79.3cd output LED strobe or 70.29cd Xenon.
Benefits
- UL464 and CAN/ULC-S525
- UL1480 and CAN/ULC-S541
- UL1971 & UL1638 and CAN/ULC-S526
- Public & private mode fire use
- Automatic synchronization on multi-horn & strobe systems
- Alarm horn: integrated tone generator with 64 alarm tones
- Speaker: 15W or 25W models with 25/70V transformer
- Marine grade aluminium enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Supervisory diode – duplicated terminals
- Dual 1/2″NPT entries with haz loc rated stopping plugs
- 316L stainless steel back plate
- Supplied with stainless steel pole mount kit
