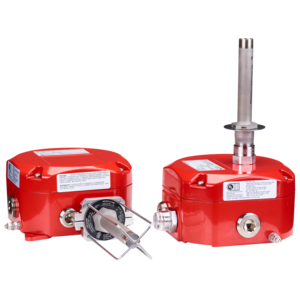

D2xH1 Heat Detector

The E2S D2xH1 globally certified heat detector provides a comprehensive solution suitable for the harshest of environments. Featuring the D-A-F rate compensated heat detector elements with stainless steel casing and hermetically sealed contacts. The D2xH1 is approved for Class I Zone 2 AEx db ec, Ex db ec, Zone 22 AEx tc/Ex tc, Class I/II Div 2 applications plus versions certified as intrinsically safe. Global approvals include IECEx, ATEX, UL, ULC and cUL.

• Robust corrosion proof LM6 marine grade aluminium enclosure
• Ingress protection IP66/67 Type: 4/4X
• Compact enclosure
• Multiple cable entries
• Stopping plugs supplied
• UL521 and CAN/ULC-S530 approved
• EN54-5 compliant
• D-A-F rate compensated heat detector elements
• Versatile: various temperature settings available
• Durable: long lasting stainless steel element shell
• Reliable: hermetically sealed internal contact area
• Economical: wide installation spacing reduces installation costs
• Factory set temperature
• Globally approved to IECEx, ATEX, UL, cUL and ULC standards
• Version E: Zone 2, Zone 22, Class I/II Div 2
• Version I & R: Zone 0, Zone 21, Class I/II Div 1
