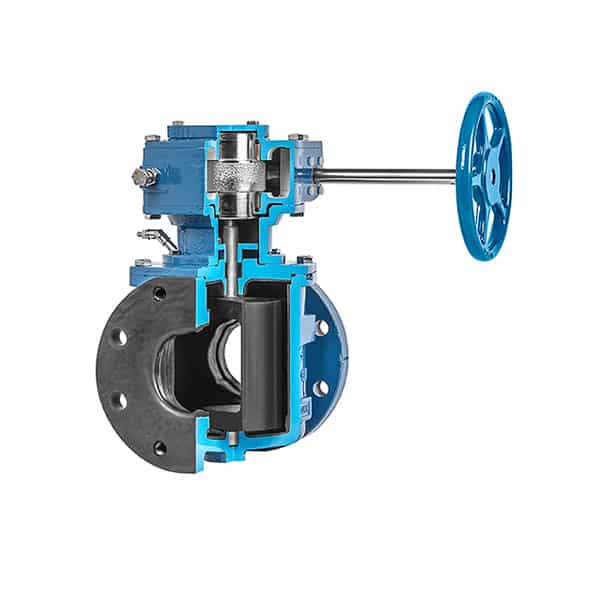

DeZURIK Soft Rubber Lined Eccentric Plug Valves (PEC or PEF-CIS)

The DeZURIK Soft Rubber Lined Eccentric Plug Valve has proven to be an excellent valve selection for on-off corrosive and abrasive slurry service. The internal valve body, flange faces, plug and cover surfaces are lined with soft rubber to resist abrasion. DeZURIK soft rubber lined valves are used in ash handling systems, scrubber circulating and effluent discharge, thickener feed and under-flow, ball and rod mill feeds, classifier feeds, reclaimed water, and tailing systems.

The combination of the raised seat and eccentric action allows solids to be wiped away to provide positive closure. The standard CIS Soft Rubber Lined Valve can be provided with several additional features which make it even more suitable in special applications. Purge connections can be placed in the valve body directed at the plug face in the open position, which allow the area between the plug and the valve body to be flushed if necessary. Manual or powered actuators in rugged sealed enclosures are available.
