Extended Service Cast Stainless Steel Knife Gate Valves

DeZURIK Extended Service Cast Knife Gate Valves (KGC-ES) are designed for improved sealing, extended packing life and reduced maintenance in the toughest corrosive, abrasive liquid slurry or dry material applications including Pulp and Paper, Mining, Wastewater, Chemical, Petrochemical, Power, Steel, Food Processing or other Industries. DeZURIK 2-24″ KGC Knife Gate Valves conform to the requirements for design and production testing of AWWA C 520-10, First Edition.

The heart of the KGC-ES is the DeZURIK Exclusive Premium Packing System. This system features a tight tolerance machined packing chamber, rounded gate edge, anti-extrusion ring, and many packing options to meet the demands of your specific application. All of these features together will improve sealing, extend packing life, and reduce maintenance.

The cast body and packing gland are available in 304, 316, 317, 254-SMO, 2205 Duplex Stainless Steel or Hastelloy C. KGC-ES Knife Gate Valves are available in sizes 2-48″ (50-1200mm) with metal, resilient or soft seats. They feature cast guides, jams, and high flow capacity,

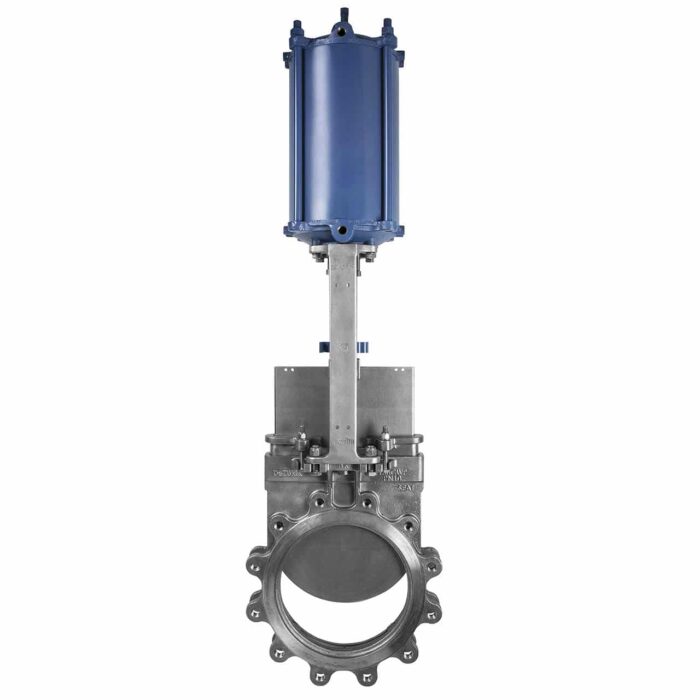

The actuator superstructure is heavy duty cast carbon steel or cast stainless steel to minimize corrosion. A variety of actuator options are available including handwheels, chainwheels, bevel gears, levers, pneumatic cylinders, hydraulic cylinders, and electric motors. A full complement of accessories is also offered.
