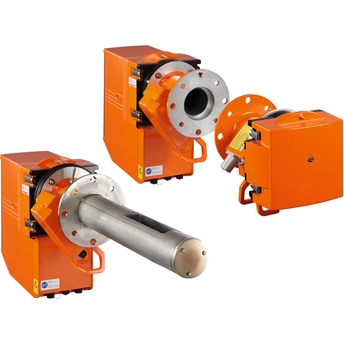

GM35 process gas analyzer

Simultaneous or as individual measurement: the GM35 gas analyzer measures CO2, H2O and CO, as well temperature and pressure – and it does this reliably, quickly, and economically. As an in-situ gas analyzer, the GM35 detects these gas components directly in the gas stream without gas sampling. Reliability, accuracy, and short response time of the GM35 offer a key advantage for efficient control loops in CO and CO2-generating processes.

• Emission monitoring according to EN 14181, e. g., in power or cement plants

• Control of the water injection upstream of the electrostatic precipitator

Device properties:

• Dynamic humidity correction

• Fast in-situ measurement directly in the process

• Simultaneous determination of up to three gas components, temperature, and pressure

• No gas sampling and conditioning

• Gas testable version of measuring probe available

• Integrated self-test and control functions

• Dynamic moisture measurement directly within the process
• Provision of measured moisture reference values
• Nearly uncompromised measured values thanks to in-situ measurement
• Fast or transient process deviations are measurable
• Representative measurement by selecting a suitable measuring probe or cross-duct type
