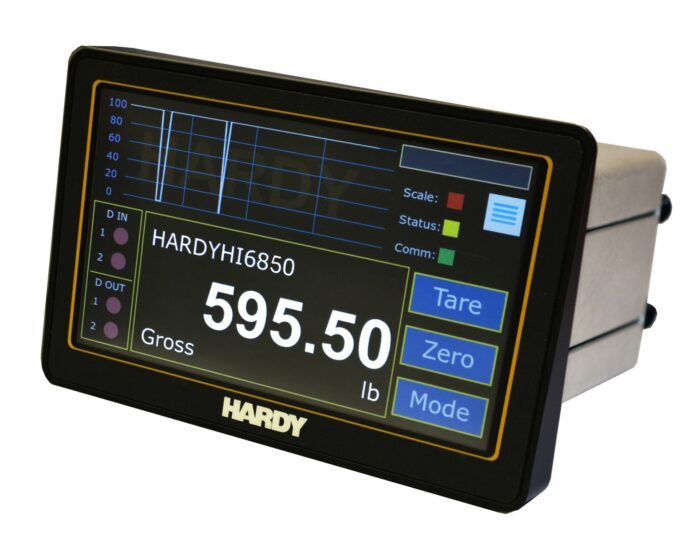

HI6850 – Weight Controller
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
Designed to address the needs of both highly integrated and stand-alone industrial weighing applications, the HI 6850 serves as an all-in-one weight controller with up to 4 channels of weight. Featuring dual-port Ethernet connectivity and an embedded network switch, the HI6850 makes serving up data to both control networks and information networks simple and safe. Choose from the most popular Industrial Fieldbus protocols for control networks: EtherNet/IP or Modbus TCP/IP; while reaping the benefits of IIoT device-level connectivity though a built-in Webserver.
Overview
The HI6800 series instruments are weight controllers ideal for a wide variety of weight-based applications. The new HI6850 features a dual-core processor and combines direct process control with fast, accurate and stable weight data essential to profitable manufacturing operations.
Benefits
- Optional – GPIO card (up to 2 per instrument)
- 4 analog outputs (4-20mA)
- 4 inputs (sinking 0-24vdc)
- 2 outputs (sourcing
- 1 analog input (4-20mA, 5-32vdc)
- GPRC card (up to 2 per instrument)
- 8 DC relays (NO, 5-30 VDC, 1A)
- PROFINET Communications Card
