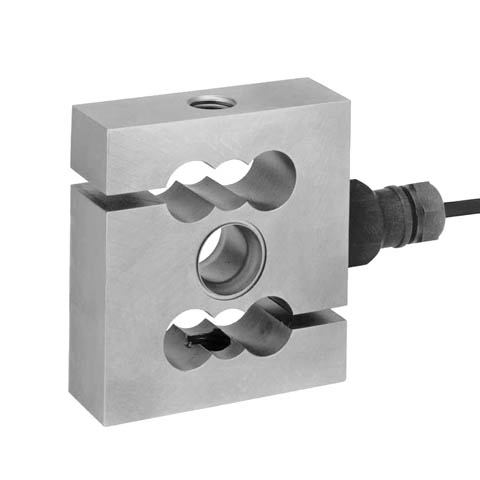

HISTH – C2® Hermetic Stainless Steel S-Beam Tension Load Cell (225 lbs – 6,600 lbs)

Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT

The HISTH family of stainless steel mV/V and mV/V/ohm matched load sensors are tension load cells that feature true hermetic sealing, C2® Electronic Calibration capabilities, on-board electronic certs, a ¼ NPT conduit adapter and twenty feet of cable. These load sensors have an IP rating of IP68/IP69K.Each HISTH load cell is compatible with clevis style mounting hardware to provide exceptional load cell accuracy while accommodating for side forces. They are ideal for hanging tanks, hoppers, and other vessels that are suspended and are ideal for mezzanine applications. The HI HLPT06 sensor is available in the following standard capacities: 225 lbs, 450 lbs, 1,125 lbs.The HISTH01 standard capacities are 2.25K lbs, 4.5K lbs and 11.25K lbs.
