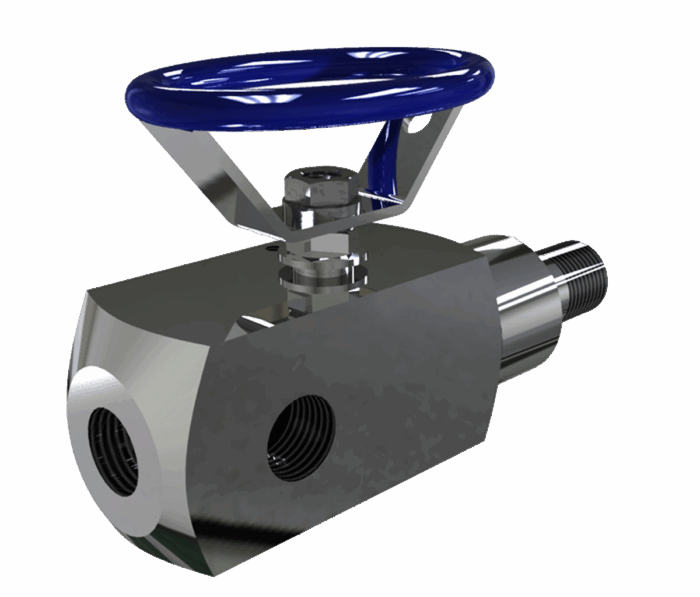

IV1100 Series – 2 Piece, Full Port, ANSI Class 900 or 3000 WOG Instrumentation Valve

The AVCO IV1100 series ball valve is a welded instrumentation valve with multiple ports based upon the proven design of our signature 1000 series high performance ball valves. The body and end are machined from bar stock with the body having multiple 1/2” FNPT connections to allow addition of measurement devices. The end connection is available as 1/2” or 3/4” FNPT. It is designed in-house to meet or exceed ASME B16.34 class 900 or 3000 WOG and fully tested to API 598. Materials of construction are stainless steel, carbon steel and various alloys including Hastelloy, Alloy 20 & Monel. The floating ball sits between two encapsulated seats of various materials for long operation in most harsh environment and high temperature applications. The stem is live loaded with blow out prevention and has online adjustment capability. This valve is ideal use when system measurements are required in the oil, gas, petrochemical, chemical and steam industries.
