*Price available upon request

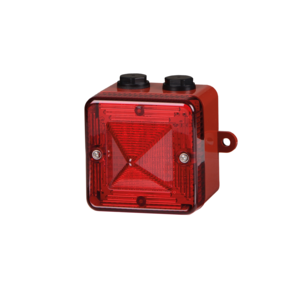

L101X Xenon Strobe Beacon
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
Automatically synchronised with an effective light output of 200 cd. Featuring a fire retardant, UV stable IP66/IP67 Type 4/4X/13/3R enclosure the L101X is suitable for all environments. Available with a choice of mounting options and seven lens colours. SIL1 & SIL2 Route 2H compliant to IEC61508 (2010) as standard.
Overview
The L101X is a compact, robust 5 Joule Xenon strobe beacon ideal for all signalling applications including fire, security and process control. UL/cUL approved and CPR compliant – tested to UL1638 & EN54-23. SIL1 compliant.
Benefits
- EN54-23 VAD fire beacon – CPR compliant
- UL1638 private mode fire alarm use
- UL1638 emergency warning mode use
- UL1638 general signaling use
- CAN/ULC-S526 fire alarm use
- Automatic synchronisation
- Continuously rated
- Dual M20 or 1/2″NPT clearance cable entries
- Duplicate pluggable cable terminations – Class A
- Ingress protection IP66/IP67 Type 4/4X/13/3R
- 3 user selectable flash rates
- Diode polarized for use in supervised circuits
- UL Marine approved
