MA Series | Ordinary Locations

Available In: CT, MA, ME, NH, NY, RI, VT

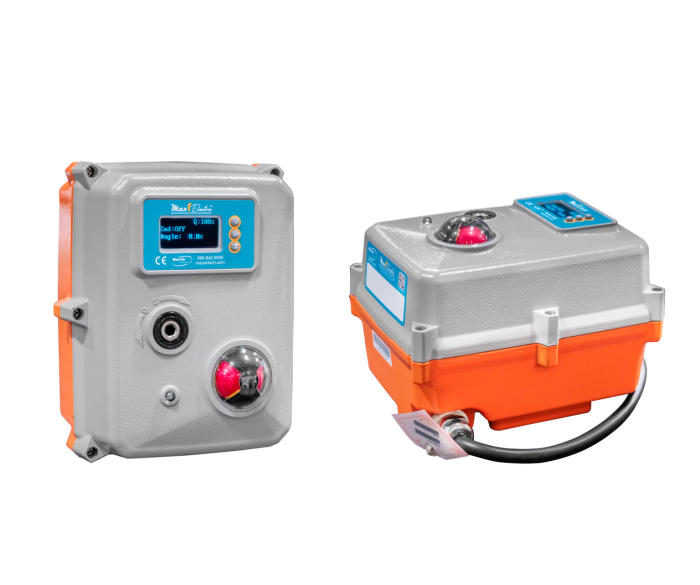

MA Series industrial electric actuators are offered in 4 frame sizes and 8 different torque ratings providing 133 in-lbs thru 1,770 in-lbs. These units utilize an “Advanced Interface” for operation and configuration with all set-up and monitoring done through a set of push buttons and illustrated on an OLED screen. All units come standard with 3 meter cable integrated into an industrial powder coated heavy duty, IP67 aluminum enclosure, ISO mounting and female drive output. MA Series actuators are available in 24 VAC/VDC or 90 to 265 VAC.

All MA Series are available in either Open / Close / Jog control, as well as full Modulating control configuration (3 position and a multitude of other control configurations are available). Failsafe configuration utilizing SuperCap technology is available for these units as an option; this will provide full CW positioning of the unit under loss on mains power. A 360-degree viewable raised position indicator, manual override, 2 auxiliary switches, and anti-condensation heater are standard on all units.
