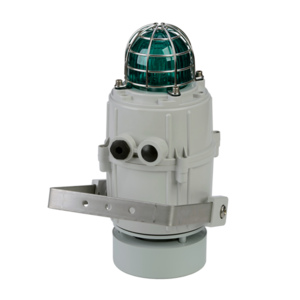

MC1X05R Radial Alarm Horn & Xenon Strobe
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
The radial horn on the MC1X05R distributes the alarm tones omni-directionally allowing the beacon to be orientated in the optimal position. The MC1X05R provides a choice of 64 alarm tones and 4 remotely selectable stages. The Xenon strobe beacon automatically synchronises with other MC1X05R devices on the same power supply. The sounder & beacon can be operated individually or simultaneously.
Overview
The MC1X05R combines a high output, 114dB(A) alarm sounder with a 5 Joule Xenon strobe beacon. Featuring a robust, fire retardant, IP66 & IP67 housing, the MC1X05R is particularly suitable for harsh environments with high ambient noise levels.
Benefits
- Ingress protection IP66/67 Type 4/4X/13
- Glass lenses & 316 (A4) Stainless steel guard
- UV stable PC, field replaceable, colour lens filter
- Large termination area
- Dual M20 or 1/2″NPT cable entries – adaptors available
- Stopping plug included
- 316 (A4) Stainless steel mounting bracket
- Ratchet adjustable ‘U’ bracket for 360° positioning
- Duplicate cable terminations
- Reverse polarity diode fitted
- Continuously rated
- Automatic synchronisation
- 64 alarm tone frequencies and 4 remotely activated alarm stages
- Positive or negative stage activation switching
- Alternative activation configurations available
- Available with custom tone configurations and frequencies
- Alarm horn/sounder & beacon can be operated individually or simultaneously
