*Price available upon request

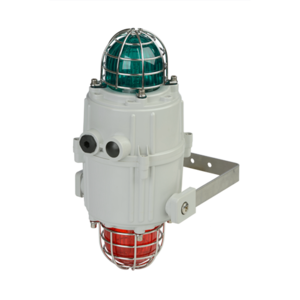

MCBLD2X05 LED & Xenon Strobe Beacon
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
The ‘M’ series of products have been designed to withstand the harshest of environments. Constructed from lightweight, impact and fire resistant ABS, the range features stainless steel, ratchet adjustable mounting brackets and has been third party tested to IP66/67.
Overview
The MCBLD2X05 is a dual LED and 5 Joule Xenon strobe beacon and status light featuring a robust, fire retardant, IP66 & IP67 Type 4/4X/13 enclosure. The two light sources can be connected to operate from the same power source or individually.
Benefits
- Ingress protection IP66/67 Type 4/4X/13
- Glass lenses & 316 (A4) Stainless steel guard
- UV stable PC, field replaceable, colour lens filter
- Large termination area
- Dual M20 or 1/2″NPT cable entries – adaptors available
- Stopping plug included
- 316 (A4) Stainless steel mounting bracket
- Ratchet adjustable ‘U’ bracket for 360° positioning
- Duplicate cable terminations
- Reverse polarity diode fitted
- Continuously rated
- Automatic synchronisation on multi-beacon systems
- Xenon beacons can be set to flip-flop, alternating flash mode
- Xenon tubes mechanically secured against shock & vibration
- Array of 4 x high power Cree® LED’s
- Modes:
1Hz flash (60 fpm)
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady - LED eff. Intensity: 87 cd – High Power Steady
- LED eff. Intensity: 160 cd – 1Hz flash
- Xenon eff. Intensity: 120 cd
