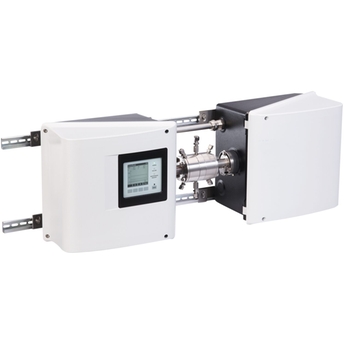

MCS300P process gas analyzer

The MCS300P is an extractive process photometer for measuring gaseous or liquid media. It measures IR- and VIS-active components with variable measuring ranges from very low (ppm) to high (vol%) concentrations. For monitoring toxic or flammable mixtures, it features special process cells with integrated protective devices, such as double seals and purge gas chambers on both sides.

• Process monitoring in production of vinyl chloride or isocyanate

• Process control in the chemical industry

• Process monitoring in the production of plastics

• Monitoring of exhaust gas purification plants

Device properties:

• Simultaneous measurement of up to 6 components

• Process cells up to 60 bar and 200 °C available

• Automated sample point switching

• Protective devices for measurement of toxic or flammable mixtures

• Extended operation via PC and SOPAS ET software

• Flexible I/O module system

• Automatic adjustment without expensive test gases
• Integration into existing networks
• Integration of external parameters like temperature or pressure
• Suitable for explosive environments
• Easy installation and maintenance thanks to transparent, compact design
