ME Series | Ordinary Locations

Available In: CT, MA, ME, NH, NY, RI, VT

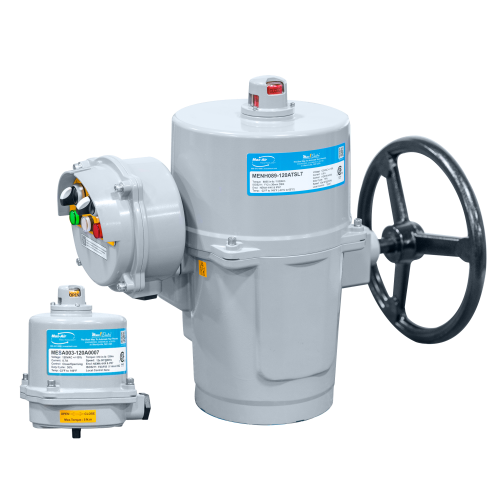

ME Series industrial electric actuators are offered in 8 frame sizes and 15 different torque ratings providing 310 in-lbs thru 40,000 in-lbs. All units come standard with an industrial powder coated heavy duty, NEMA 4/4X/IP67 aluminum enclosure, ISO mounting and female drive output. ME Series actuators are available in 12 VAC/VDC, 24 VAC/VDC, 120VAC, or 230 VAC models; these are also offered in complete 3 phase configurations with and without motor control centers.

All units are available in either Open / Close / Jog control, as well as full Modulating control configuration (optionally 3 position, SCADA, and various other control and operating options are available to meet the most demanding of application requirements). Torque switches are available as an option. A complete array of local control operators are available; these will provide local or remote operation with full control and status indication to the control system. A 360-degree viewable raised position indicator, manual override, 2 auxiliary switches, and anti-condensation heater are standard on all units. The units are optionally available in NEMA6P/IP68 for submersion rated applications.
