*Price available upon request

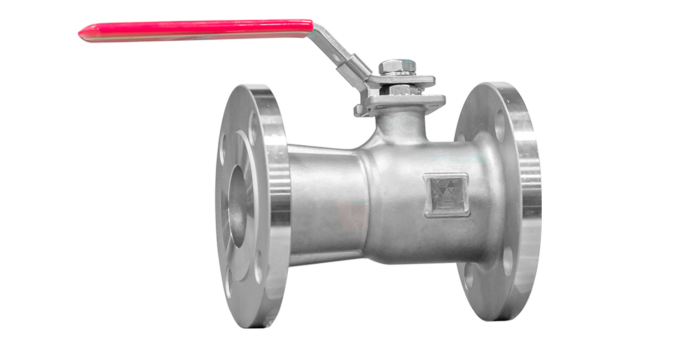

MU1F Series | UnibodyFlanged Class 150
Available In: CT, MA, ME, NH, NY, RI, VT
Class 150
Size Range 1/2” thru 4” Reduced Bore
ISO 5211 Mount Pad
Body Material CF8M, WCB
Body Wall Thickness ASME B16.34
End Connections: RF Flanged
Fugitive Emissions ISO 15848
Anti-Static Device and Live-Loaded Packing
Blowout Proof, Low Torque Guided Stem Design
Manual, Electric, Pneumatic Operators
Overview
- Class 150
- Size Range 1/2” thru 4” Reduced Bore
- ISO 5211 Mount Pad
- Body Material CF8M, WCB
- Body Wall Thickness ASME B16.34
- End Connections: RF Flanged
- Fugitive Emissions ISO 15848
- Anti-Static Device and Live-Loaded Packing
- Blowout Proof, Low Torque Guided Stem Design
- Manual, Electric, Pneumatic Operators
