*Price available upon request

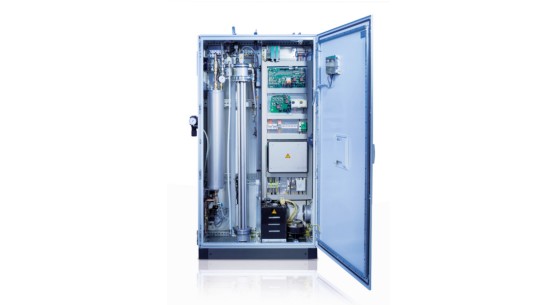

Ozone System OZONFILT OZMa
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
The ozone systems OZONFILT OZMa are pressurised systems, in which the feed gas – air – is fed into the ozone generator under pressure.
Air is used as the feed gas in the ozone system OZONFILT OZMaA type 1 to 6
The ozone is generated from the oxygen in the ambient air and simultaneously metered. A demand-driven, self-optimising pressure swing dryer reduces the consumption of compressed air to a minimum. Ozone can therefore be generated safely and reliably even with a high level of ambient air humidity with ozone concentrations of up to 20 g/Nm3. Using the suitable mixing equipment, ozone concentrations of between 3 and 12 ppm can be achieved in the water to be treated, depending on the temperature.
Overview
OZONFILT OZMa is synonymous with maximum operational safety and minimal operating costs. The ozone generator is maintenance-free and generates up to 0.93 lb/h (420 g/h) of ozone from compressed air.
Benefits
- Economical: maintenance-free generator concept with virtually unlimited service life
- Up to 30% energy savings for air treatment, thanks to demand-controlled and self-optimising air drying compared to conventional air treatment.
- Automatic control of the feed gas depending on the ozone output, therefore reduced consumption of feed gas produced with intensive use of energy.
- High ozone concentration ensures optimum ozone solubility in water
- Direct injection without injector system for up to 29 psi back pressure
- Automatic ozone generation, virtually independent of fluctuations in mains voltage and pressure
- Simple, safe and reliable operation as well as process visualisation thanks to a large, colour and clearly arranged 6.5″ touch panel
- Continuous adjustment and precise output control of between 3% and 100% of the nominal power with ozone volume displayed in “grammes/hour”
