*Price available upon request

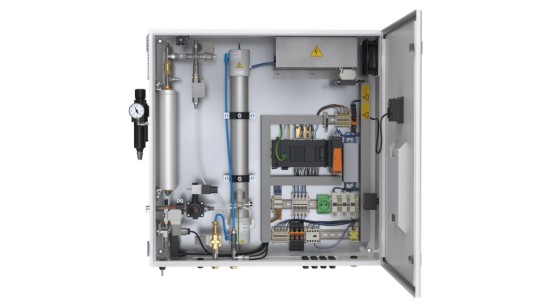

Ozone System OZONFILT OZVb
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
OzoneSignificantly less environmentally harmful by-products result from the generation and use of ozone.
The ozone is generated from the oxygen in the compressed air and simultaneously metered. The integrated air treatment system is designed as a pressure swing dryer. Ozone can therefore be generated safely and reliably even in difficult conditions with ozone concentrations of up to 20 g/Nm3. Ozone concentrations in the water to be treated of between 3 and 12 ppm can be achieved using our coordinated mixing equipment with an efficiency of up to 95%.
Overview
OZONFILT OZVb is powerful and compact and is ideal for efficient ozone generation from compressed air in the output range of up to 0.15 lb/h. The turnkey ozone system including mixing equipment offers everything you need for safe and seamless operation.
Benefits
- Safe and seamless operation through continuous monitoring of all relevant operating data
- Simple, safe and reliable operation with process visualisation thanks to colour and clear 4.3″ touch panel
- Compact system with integral air treatment
- Turnkey complete system with perfectly coordinated mixing device including back pressure valve, vacuum breaker and static mixer
- Direct injection without injector system for up to 58 psi back pressure
- Low maintenance and operating costs thanks to maintenance-free generator concept and virtually infinite service life
- Maximum efficiency with minimal consumption of energy and cooling water
- Continuously variable and precise output control of between 3% and 100% of the nominal power with ozone volume displayed in “grammes/hour”
- Automatic adjustment of the performance data to fluctuations in mains voltage and pressure
