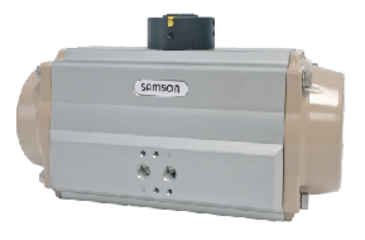

ROTACTOR® RP 3171 Rotary pneumatic actuator

Rotary pneumatic actuator

• For remote operation (on/off or modulating duties) of industrial valves such as ball valves, butterfly valves and plug valves as used in process industries like chemical, petrolchemical, pharmaceutical, water treatment, oil & gas
• Alodur® hard anodized extruded aluminum body for corro¬sion protection, low friction and wearing resistance
• • Dual piston rack and pinion design for compact construc¬tion and symmetric mounting.
• Fully machined teeth on piston racks and pinion shaft for accurate positioning, low backlash and maximum engagement.
• Two indipendent external travel stop adjustments.
• Universal and anti-blowout drive shaft with multiple valve connection options.
• Identical body and end caps for double acting and spring return configuration to allow field conversion.
• Stainless steel fasteners for high corrosion resistance.
• Multiple bearings and giudes for high cycles and low friction
• Modular preloaded springs.
• Extended working temperature range as standard.
