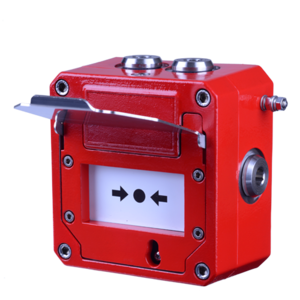

STExCP8-BG-I IS Break Glass Call Point
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
Available with standard DIN rail terminals or the innovative E2S termination board providing dedicated connections for EOL and/or series devices. The break glass element features a safety membrane and is designed to snap ensuring the no glass fragments are released during activation. A hammer is available as an accessory if required by local code. SIL2 compliant to IEC 61508 (2010). DNV type approved for exposed locations.
Overview
The intrinsically safe STExCP8-BG-I break glass manual call point, with a 316L stainless steel enclosure, is designed for the harshest of environments. Approved for Class I Div 1 and Zone 0 hazardous areas for fire and gas alarm systems, ESD and process control.
Benefits
- Robust corrosion proof 316L stainless steel enclosure
- Epoxy powder coat paint finish
- Alternative housing colours are available to meet specific requirements
- Ingress protection IP66/67
- Single or double switch
- Optional equipment tags and duty labels
- Optional stainless steel lift flap
- 2 × 316 Stainless steel stopping plugs included
- 3 x M20 cable entries
- Stainless steel fasteners
- Test key facility
- Break glass hammer accessory available
- Optional LED indicator
