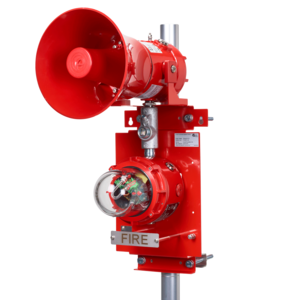

D1xC1F Horn/Speaker Strobe
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
Robust Type 4/4X, IP66 marine grade, corrosion proof aluminium enclosures with 316L stainless steel back plate – approved for Class I Division 1 and Class I Zone 1 applications. Horn options offer 115dB(A) or 123dB(A) sound level outputs employing class D amplification to provide a high sound output at optimum operating current. Multiple horn & strobe D1xCF units will auto-synchronize when powered from the same source, removing the need for sync modules.
Overview
The D1xCF is a unique solution for combined audible and visual public notification in explosion proof environments. With a choice of either alarm horn or speaker the D1xCF features a factory assembled configuration integrating the audible signal with a high output Xenon strobe with 86cd or 190cd options.
Benefits
- UL464 and CAN/ULC-S525
- UL1480 and CAN/ULC-S541
- UL1971 & UL1638 and CAN/ULC-S526
- Public & private mode fire use
- Choice of three flash rates: 1Hz, 1.3Hz & 1.5Hz
- Automatic synchronization on multi-horn & strobe systems
- Alarm horn: integrated tone generator with 64 alarm tones
- Speaker: 15W or 25W models with 25/70V transformer
- Marine grade aluminium enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Supervisory diode – duplicated terminals
- Dual 1/2″NPT entries with haz loc rated stopping plugs
- 316L stainless steel back plate
- Supplied with stainless steel pole mount kit
