*Price available upon request

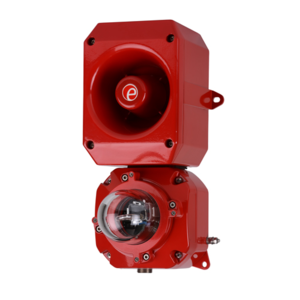

D2xC2XH1 Horn & Strobe UL464 & UL1971 – Auto Sync
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
Multiple D2xC2XH1 units will auto-synchronize when powered from the same power source removing the need for any additional sync modules in the circuit. The horn & strobe can be powered from the same source, simplifying installation and reducing cabling costs. The unit is UL/cUL & ULC approved for Class I Div 2, Class II Div 2, Class I Zone 2/22 as well as IECEx and ATEX certified for Zone 2 and 22 hazardous area applications.
Overview
The D2xC2XH1 is a 18.18cd auto-synchronizing alarm horn & Xenon warning light / beacon tested to UL464 & UL1971 suitable for public mode fire alarm, ADA compliant, hearing impaired applications.
Benefits
- Public mode fire use UL464/UL1971 & CAN/ULC-S525/S526
- Auto-synchronized for over 2 hours per UL1971
- 18.18 eff. candela – UL1971 Public mode fire
- 107dB(A) @ 10ft/3m max. sound output – UL464
- 64 alarm tones, 4 remotely selectable alarm stages/channels
- Ultra low combined operating current of 405mA
- In rush limiting circuit – 2.2A for 9ms
- Choice of three UL1971 tested flash rates: 1Hz, 1.3Hz, 1.5Hz
- Marine grade aluminum enclosure
- Ingress protection Type 4/4X/3R/13, IP66
- High impact resistant Borosilicate glass lens
- Duplicate, pluggable cable terminations
- Supervisory diode
- Dual 1/2″NPT entries
- Supplied with haz loc rated stopping plugs/adaptors
