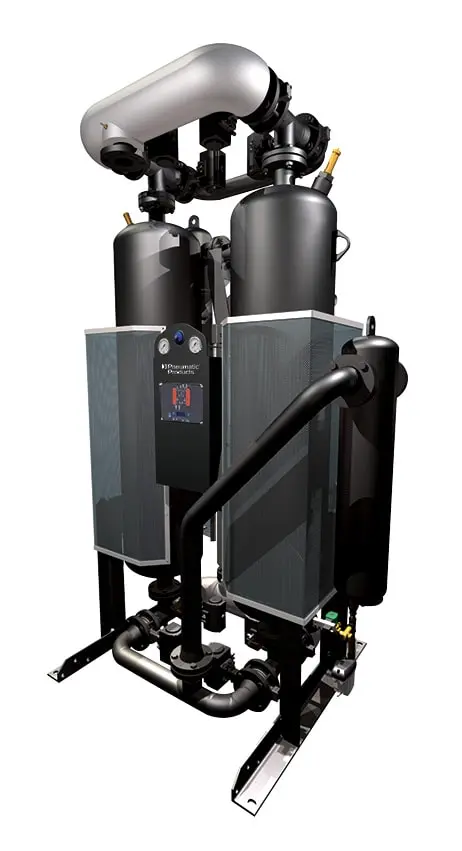

NRG-LES Series – Heat of Compression Desiccant Air Dryers

Pneumatic Products’ NRG-LES Series heat of compression desiccant air dryers provide a cost effective solution to remove moisture from compressed air. The sustainable energy saving design reduces operating costs and delivers instrument quality air.

Thermal energy generated during the air compression process is effectively utilized to regenerate the off-line desiccant bed. Ideally suited for oil-free air compressors, NRG-LES Series dryers turn waste heat into energy savings.

Advantages:

Delivers ISO 8573.1: 2010 Air Quality Class 2 to 4 pressure dew point (-40ºF to +37ºF), dependent on air compressor discharge temperature
Minimal power required, providing low cost of operation and rapid return on investment
Desiccant in the off-line tower is regenerated without the use of purge air, requiring no increase in air compressor capacity
Low outlet pressure dew points achieved without the use of blowers or booster heaters
Fully packaged, skid mounted design, provides ease of installation
