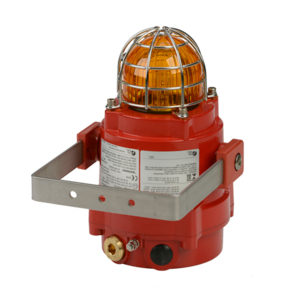

BExBGL2 Explosion Proof L.E.D. Status Light & Beacon

Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT

The BExBGL2 explosion proof Ex d LED status light & beacon utilises an array of high power Cree® LED’s, orientated to optimise visibility in any direction. The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signaled from one device. The UV stable colour filter enhances the light output and is field replaceable.

Overview

The flameproof BExBGL2 L.E.D., 160 candela multi-function beacon is suitable for Zone 1, 2, 21 & 22 applications. Approved to IECEx and ATEX standards. SIL1 compliant.

Benefits

  • Marine grade, corrosion proof, LM6 aluminium enclosure
  • Ingress protection IP66/67
  • Choice of five flash rates: 1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady On modes
  • Three remotely selectable stages/channels on DC versions.
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens colour filter
  • Stainless steel fixings
  • Dual cable entries
  • Duplicate cable terminations
    (in & out for daisy-chain installations)
  • Ratchet adjustable stainless steel ‘U’ bracket.
