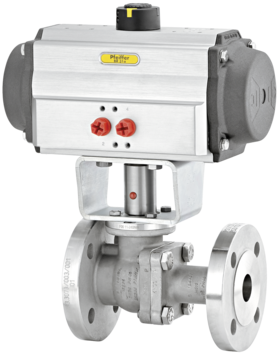

BR 26d – pneumatic – ANSI
Available In: CT, FL, MA, ME, NH, NY, PR, RI, VT
Ball Valve
Overview
Ball Valve
Benefits
- Consisting of ball valve and actuator
- Forged or bar stock ball valve
- Metal sealing system
- Gaskets live loaded on both sides
- Trunnion-mounted ball
- Corrosion-resistant materials to withstand corrosive process media
- DIN ISO 5211 interface as standard
- PTFE V-ring packing loaded by disk springs
- TA Luft
- Blow-out-proof shaft
- Face-to-face dimensions according to DIN EN 558, Series 1 or ASME B16.10-2000
- Leakage requirements according to DIN EN 12266
