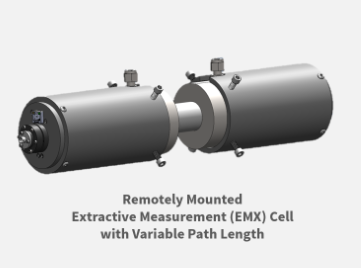

Extractive Measurement (EMX) Cell Assembly

• Direct + Non-Contract Measurements - No sensor poisoning and fouling
• Fast Speed of Response + Recovery - New and independent result every single second
• No Calibration + No Intervention - Due to the GasFinder's Internal Reference Cell
• Fail-Safe Operation + SIL2 suitable - Diagnostics with no undisclosed failure modes
• Thrives Where Others Do Not Survive - Ideal for challenging monitoring applications
• Need for Enhanced Performance - Early detection and rapid intervention save lives
• Operational Cost Savings - Low maintenance burden and no consumables

The Extractive Measurement (EMX) Cell Assembly has the following configurable options:

• Process Pressure: There is a spectroscopic limitation on pressure to 100 kpag (15 psig).
• Process Temperature: There is a spectroscopic limitation on temperature to 150C (300F).
• Other Process Conditions: In general, the gas following through the Extractive Measurement (EMX) Cell should be both clean and dry as to not foul the windows.
• Material of Construction: The Wetted Process material can either be Stainless Steel of Hastelloy.
• Path Length Options:  The 1″ NPT Wetted Process Pipe is available in lengths of: 1m, 0.5m or No Pipe included.
