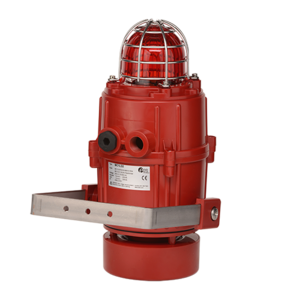

MC1LD2R Radial Alarm Horn & LED Beacon
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
The unique radial horn on the compact MC1LD2R distributes the audible warning signal omni-directionally allowing the visual signal to be orientated optimally. A choice of 64 alarm tones and 4 remotely selectable stages. The LED beacon contains an array of 4 high output, multi-function L.E.D.s. with a total of 7 modes of operation – 5 flashing modes and 2 steady modes for use in indicator / status applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signalled from one device.
Overview
The MC1LD2R combines a high output, alarm sounder with a multi-function L.E.D. beacon. Featuring a robust, fire retardant, IP66 & IP67 housing, the MC1LD2R is particularly suitable for harsh environments with high ambient noise levels.
Benefits
- Ingress protection IP66/67 Type 4/4X/13
- Glass lenses & 316 (A4) Stainless steel guard
- UV stable PC, field replaceable, colour lens filter
- Large termination area
- Dual M20 or 1/2″NPT cable entries – adaptors available
- Stopping plug included
- 316 (A4) Stainless steel mounting bracket
- Ratchet adjustable ‘U’ bracket for 360° positioning
- Duplicate cable terminations
- Reverse polarity diode fitted
- Continuously rated
- Automatic synchronisation
- 64 alarm tone frequencies and 4 remotely activated alarm stages
- Positive or negative stage activation switching
- Alternative activation configurations available
- Available with custom tone configurations and frequencies
- Array of 4 x high power Cree® LED’s
- Modes:
1Hz flash (60 fpm)
1.5Hz flash (90 fpm)
2Hz flash (120 fpm)
Double strike flash
Triple strike flash
High Power Steady
Low Power Steady - Alarm horn/sounder & beacon can be operated individually or simultaneously
