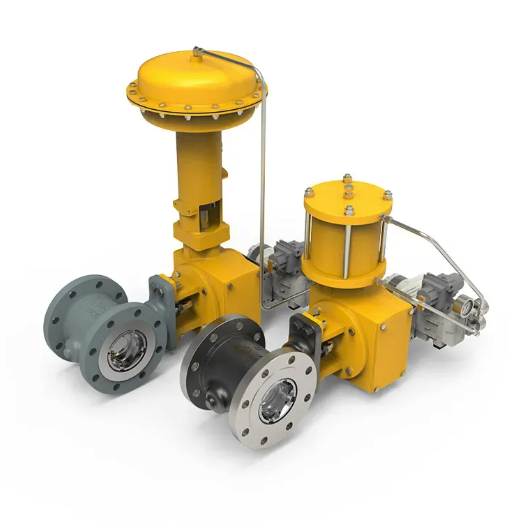

RP Series Eccentric Plug Rotary Valve
Available In: AL, AR, LA, MS, TN
The S&S® RP Series™ is a patented eccentric plug rotary globe control valve for precise control of liquids and gases.
The two-piece stem design opens up the flow gallery for high Cv in a compact envelope, while preserving the stable throttling you expect.
An integral bonnet and the elimination of a lower body flange remove common leak paths, and the interlocking anti-blowout plug-to-stem connection enhances safety.
Standard construction includes an upgraded EN 1.4418 stainless steel plug, with optional Stellite seating surfaces and alloy trims for erosive or corrosive services. Trim reductions and a wide Cv range allow the RP1 to be sized precisely, with rangeability up to 160:1.
Benefits
- High-Capacity Rotary Design – Eccentric plug rotary globe geometry deliver higher Cv in a compact footprint
- Precise Control Performance – Wide rangeability and properly sized trims provide stable throttling and accurate control across a broad operating range
- Enhanced Safety – Integral bonnet and patented anti-blowout plug-to-stem connection reduce leak paths and protect against stem ejection
- Flexible Sealing Options – Metal and soft seat constructions offer Class IV or Class VI shutoff for control and tight isolation
- Durable Trim Construction – Standard hardened EN 1.4418 stainless plug with optional overlay surfaces engineered to resist erosion
- Low Emission Packing Options – PTFE and graphite-based packing sets support fugitive emission and high temperature requirements
- Automation-Ready Platform – Standard splined shaft interface simplifies direct mounting of SPC’s RS, RC, and RE valve actuators with digital positioners
