STExCP8-BG Break Glass Call Point
Available In: AL, AR, CT, FL, LA, MA, ME, MS, NH, NY, PR, RI, TN, VT
Available with standard DIN rail terminals or the innovative E2S termination board providing dedicated connections for field installed EOL and/or series devices. The break glass element features a safety membrane and is designed to snap ensuring the no glass fragments are released during activation. A hammer is available as an accessory if required by local code. SIL 2 compliant to IEC 61508 (2010). DNV type approved for exposed locations.
Overview

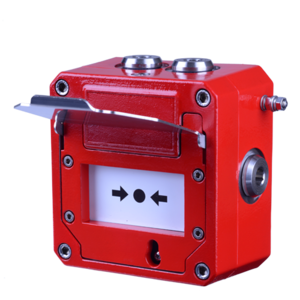

The explosion proof STExCP8-BG break glass manual call point, with a 316L stainless steel enclosure, is designed for the harshest of environments. Approved for Zone 1, 2 & Class I Div 2 hazardous areas for fire and gas alarm systems, ESD and process control.
Benefits
- Robust corrosion proof 316L stainless steel enclosure
- Epoxy powder coat paint finish
- Alternative housing colours available
- Ingress protection IP66/67
- Single or double switch
- Optional equipment tags and duty labels
- Optional stainless steel lift flap
- 2 × 316 Stainless steel stopping plugs included
- 3 x M20 cable entries
- Test key facility
- Break glass hammer accessory available
- DNV type approved IEC 60945 & DNVGL-CG-0339
- Available with addressable modules
- Optional LED indicator
