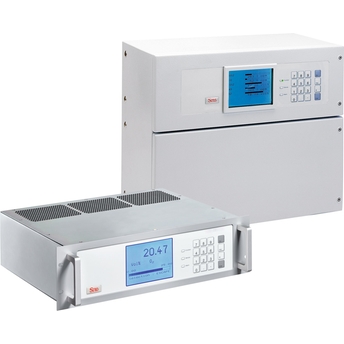

S700 process gas analyzer

With the modular gas analyzer S700, a customer-specific and tailor-made measuring device can be put together for almost every application. Various analyzer modules for the measurement of well over 60 gases, and different housing variants offer comprehensive and individually tailored combination options.

• Cooling gas monitoring of turbo generators

• CO measurement for coal mill monitoring

• H2 purity measurements in pressure swing adsorption systems

• CO2 monitoring in natural gas during natural gas processing

Device properties:

• Various analyzer modules are available: UNOR (NDIR), MULTOR (NDIR), OXOR-E (electrochemical O2), OXOR-P (paramagnetic O2), THERMOR (thermal conductivity)

• Over 60 measuring components to choose from

• Different housing variants

• Up to three analyzer modules in one housing

• Simple application-specific configuration thanks to modular design
• Can also be used in Zone 1 and Zone 2 (ATEX) explosion-hazardous areas
• Automatic readjustment using test gas or calibration cell
• Integrated self-monitoring and error analysis
• Process monitoring for the safety and quality of manufacturing processes and products by measuring flammable gases and explosive gas mixtures in zones 1 and 2
• Reliable remote control and integration into distributed control systems thanks to optional equipment with various interface converters
